- Product Image
- Product Specification
DS-132
Product Specification

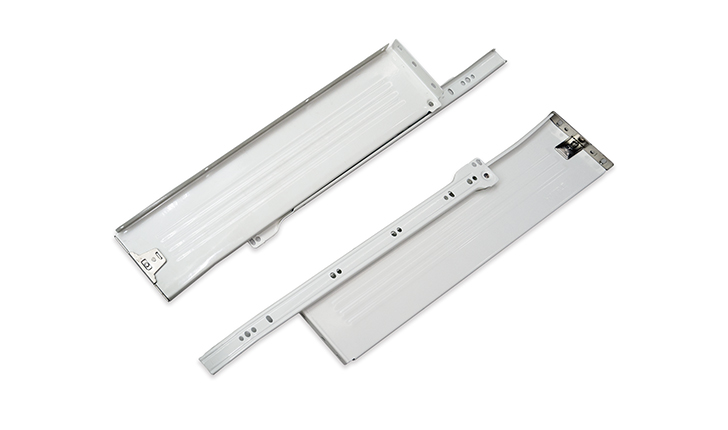

自關類側板滑軌
雙重限位止動
承重25kg
料厚（SPCC）：0.9~1.1mm
規格：10"~24"
表面處理：根據客戶需要噴涂
安裝尺寸：31±1
產品特色：DR/DL尾部安裝有快裝調節器可上下調節2mm
CR/CL上裝有緩沖器具有良好緩沖自關功能
| 型號 | 54# | 86# | 118# |
尺寸規格 | 10"250mm | 10"250mm | 10"250mm |
| 11"270mm | 11"270mm | 11"270mm | |
| 12"300mm | 12"300mm | 12"300mm | |
| 14"350mm | 14"350mm | 14"350mm | |
| 16"400mm | 16"400mm | 16"400mm | |
| 18"450mm | 18"450mm | 18"450mm | |
| 20"500mm | 20"500mm | 20"500mm | |
| 22"550mm | 22"550mm | 22"550mm | |
| 24"600mm | 24"600mm | 24"600mm |
| 型號 | 150# | 200# |
| 尺寸規格 | 10"250mm | 10"250mm |
| 11"270mm | 11"270mm | |
| 12"300mm | 12"300mm | |
| 14"350mm | 14"350mm | |
| 16"400mm | 16"400mm | |
| 18"450mm | 18"450mm | |
| 20"500mm | 20"500mm | |
| 22"550mm | 22"550mm | |
| 24"600mm | 24"600mm |
